SMD 5050 LED Strip Lights Manufacturer - RGB / RGBW / RGBIC
RaShine is a factory-direct SMD 5050 LED strip manufacturer offering RGB, RGBW, RGBCW and addressable RGBIC versions with built-in IC options. From retail signage to smart home lighting, our 5050 strips deliver vivid color and reliable performance at wholesale pricing.
What Is an SMD 5050 LED Strip?
SMD 5050 refers to an LED package measuring 5.0 x 5.0 mm mounted on a flexible PCB. The large package fits three color diodes inside, which makes 5050 the workhorse of color-changing LED strips: RGB, RGBW with a dedicated white diode, RGBCW with tunable white, and addressable RGBIC versions with built-in IC chips for pixel-by-pixel control.
Compared with smaller packages, 5050 diodes deliver higher brightness per LED and wide, even beam angles. Our 512-series strips use a 60-degree lens and dense diode spacing for smooth, dot-free color mixing even in clear diffusers.
Typical SMD 5050 Strip Specifications
Most of our 5050 models fall within the ranges below. Exact values vary by model - ask us for the datasheet of any specific item.
| Parameter | Typical Range |
|---|---|
| Voltage | 12V / 24V DC |
| LED density | 60 - 96 LEDs per meter (512-series 60D standard) |
| Power | Approx. 10 - 18W per meter, model dependent |
| Color types | RGB / RGBW / RGBCW / RGBIC (built-in IC) |
| PCB width | 10 mm standard, other widths on request |
| IP rating | IP20 indoor / IP65 coated / IP67 silicone tube |
| CRI | 80+ standard, 90+ for white-dominant versions |
Need exact wattage, lumens or cut length for your project? Message us on WhatsApp and we will send the full datasheet within one working day.
SMD 5050 Product Range
| Model | Feature | Link |
|---|---|---|
| RS-SMD3535+2025/60D-10-RGBCWIC | RGB + CCT white + IC, dual-line | View |

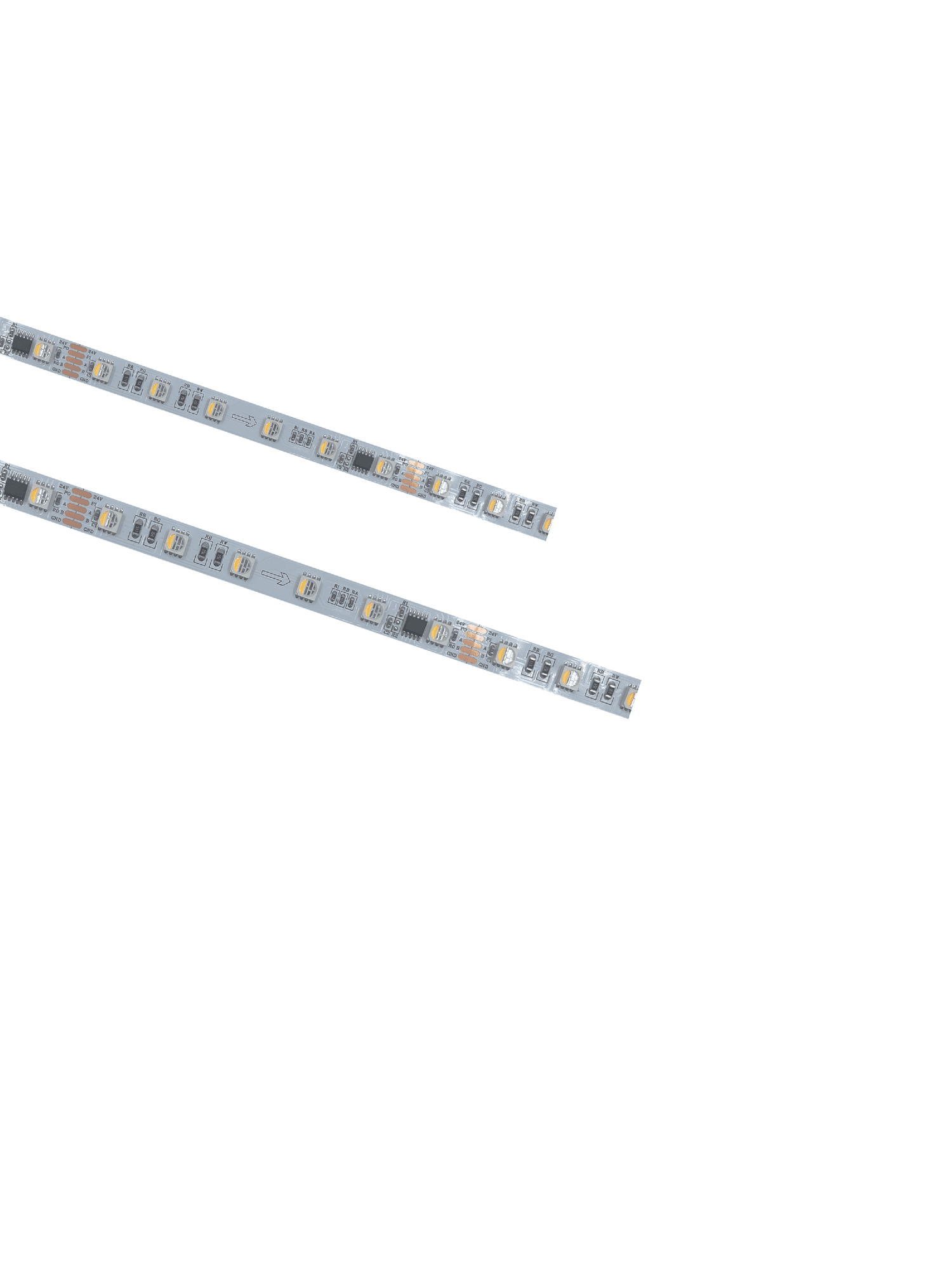

| RS-SMD5050/60D-10-4in1-RGBWIC 512 | RGBW 4-in-1 with built-in IC | View |
| RS-SMD5050/60D-10-5in1-RGBCWIC 512 | RGBCW 5-in-1 with built-in IC | View |

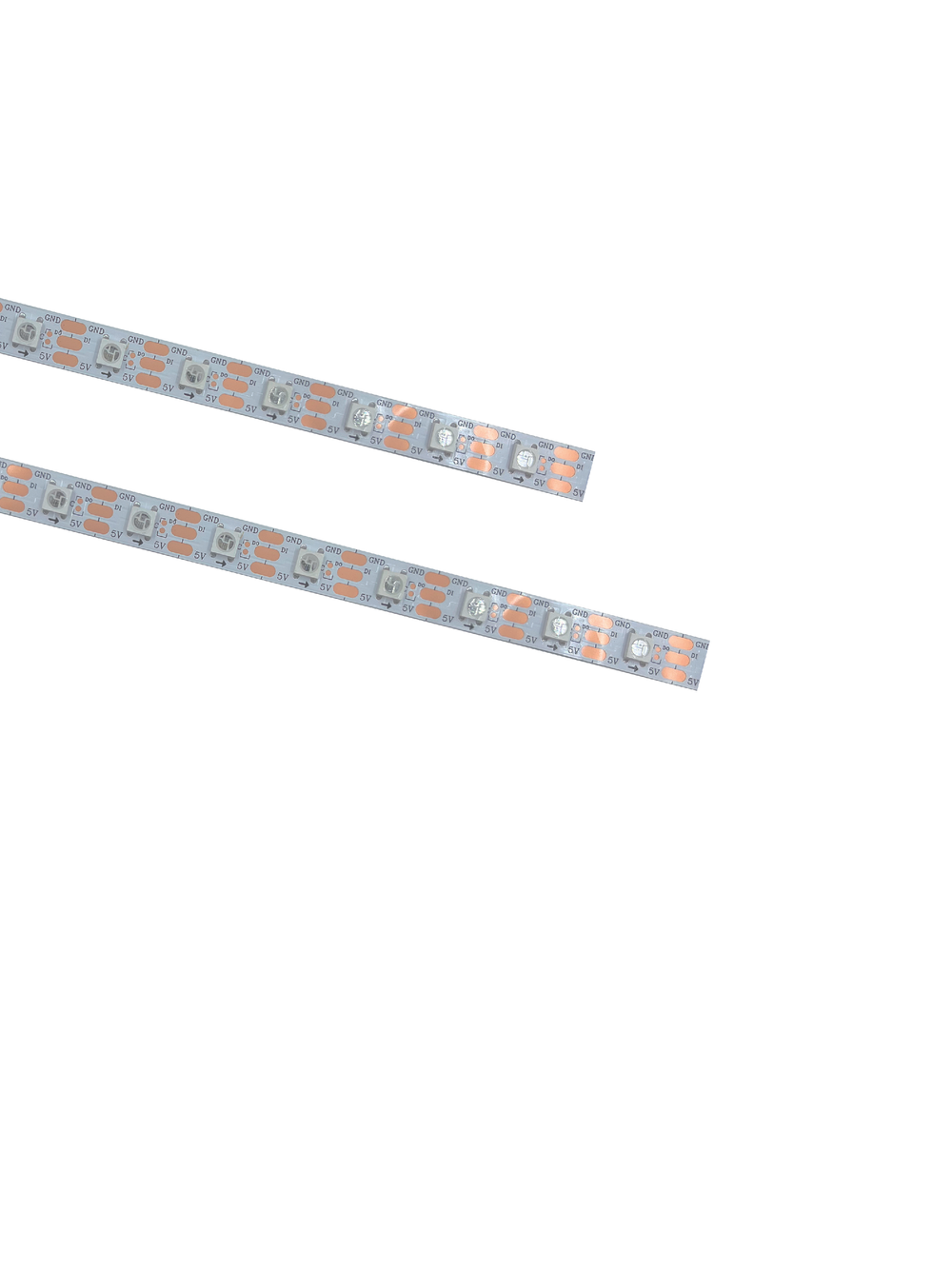

| RS-SMD5050/60D-10-RGBIC (Built-in IC) | Addressable RGBIC, chasing effects | View |
RGB vs RGBW vs RGBCW vs RGBIC: Which One Do You Need?
| Type | What it does | Best for |
|---|---|---|
| RGB | Red, green, blue mixing into colors | Decorative ambience, signage |
| RGBW | RGB plus a dedicated white diode | Projects that need real white light, not mixed white |
| RGBCW | RGB plus tunable warm-cool white | Hospitality and residential scenes |
| RGBIC | Addressable pixels, each IC controllable | Chasing effects, music sync, stage and gaming |
Not sure which one fits your project? Send us the application and controller you plan to use and we will recommend the matching model.
SMD 5050 vs COB LED Strip: Which Should You Choose?
This is the question buyers ask us most. In short: 5050 wins on saturated color and pixel effects, while COB wins on dotless uniform white and seamless light line. Many projects use both - COB for the architectural white light, 5050 RGBIC for the accent and entertainment zones.
| Aspect | SMD 5050 | COB LED Strip |
|---|---|---|
| Light appearance | Visible diodes at close range, vivid color | Dotless, continuous light line |
| Best at | Color changing, chasing, music-sync effects | Uniform white / single-color architectural light |
| Color options | RGB / RGBW / RGBCW / RGBIC | Single color, CCT, RGB |
| Viewing distance | Best with diffuser or 30cm+ away | Perfect even in clear view |
Want the dotless option instead? See our COB LED Strip page for the full COB range.
Custom & OEM 5050 LED Strip Service
As an LED strip factory, we build 5050 strips to your spec: custom LED density, PCB width and color, voltage, wire gauge, connector type, waterproofing level, reel length and private-label packaging. Whether you need an addressable RGBIC strip matched to your controller protocol or a RGBCW strip certified for a specific market, our technical team will confirm feasibility before quoting.
Why Buyers Choose RaShine SMD 5050 Strips
Full color range
RGB, RGBW, RGBCW and addressable RGBIC in one supplier.
Built-in IC options
Pixel control without extra decoder boxes, for chasing and music-sync effects.
512-series even mixing
Dense diode spacing and 60-degree lens for smooth color in clear diffusers.
Low MOQ from 200m
Start with a trial reel, not a container. Mix models in one order.
48h dispatch from stock
Core SMD models are stocked and shipped within 48 hours of payment.
CE / RoHS, 3-5 yr warranty
Certified for EU and North America markets with a written warranty.

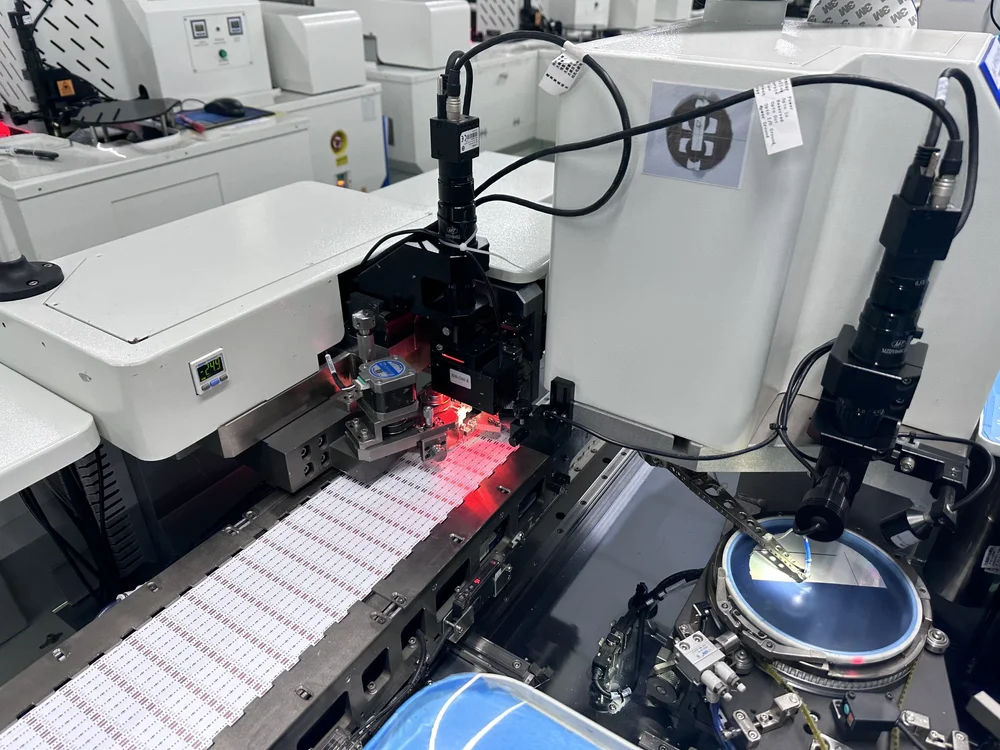

Manufactured in Our Own Factory
Every SMD strip we ship is assembled, aged-tested and packed in our own factory, so we control chip binning, color consistency and solder quality at the source. Buying factory-direct means no trading-company margin, direct access to the team who builds your order, and faster answers when a project spec changes.
Applications
Our SMD 5050 RGBIC and RGBW strips are used in TV backlighting and gaming setups, bar and restaurant ambience, stage and event lighting, retail window displays, smart home scenes with music sync, hotel and KTV decorative lighting, and any project that needs saturated color with pixel-level control.
Frequently Asked Questions
What is the minimum order quantity for SMD 5050 LED strip?
MOQ starts from 200 meters and models can be mixed within one order for most stocked items.
Can I get a free sample?
Yes. Trade buyers get one free 1m sample cut per spec - you cover the courier. Drivers, controllers and full reels are quoted at trade price.
How fast do you ship?
Stocked SMD models ship within 48 hours after payment. Custom production typically takes 7-25 days depending on quantity.
SMD 5050 vs COB LED strip - which one is better?
Neither is universally better. Choose 5050 when you need saturated colors, RGBW/CCT options or addressable RGBIC effects. Choose COB when you need a dotless, seamless light line for architectural or residential white light. Many projects combine both - see our COB LED strip page for comparison details.
What controller do I need for RGBIC strip lights?
Built-in-IC RGBIC strips work with standard SPI pixel controllers, RF remote controllers with preset effects, or app/voice controllers that support music sync. Tell us your controller or app ecosystem and we will match the IC type before you order.
Do you offer custom specifications?
Yes. We customize diode count, PCB width, voltage, CRI, CCT, length, connectors, waterproofing and private labeling.
What certifications do your SMD strips carry?
CE and RoHS as standard, with a 3 to 5 year warranty depending on the model. Other certifications can be arranged for large volume orders.
Get a Factory-Direct Quote in 24 Hours
Send your required length, color type and quantity - we will quote the same working day.
Reviewed by Yuna Xiong, Export Manager - RaShine Lighting. Last updated October 2026.
